JNOG3

$529.98

Beech Wood (+$49.99)
Blood Wood (+$69.99)
Canary (+$89.99)
Cherry (+$59.99)
Curly Maple (+$59.99)
Mahogany (+$59.99)
Padauk (+$59.99)
Poplar (+$49.99)
Purple Heart (+$69.99)
Red Oak (+$49.99)
Walnut (+$59.99)
Wenge (+$99.99)
White Oak (+$49.99)
Zebra (+$99.99)
Custom (+$99.99)
Select wood type for sides of case.
Product total
Options total
Grand total

The J3 will have 3x 8pin DIP sockets available on the board.  This will allow you to swap out the opamps with the Sparkos 3602, or any of your favorite chips.  It will also support the Sparkos 2590’s stacked pair which requires a PRO TO DUAL DIP8 ADAPTER.

  • AKM4499/AKM4191 Chipset
  • TI DIX9211 SPDIF DIR Chip
  • Twin TI1656/SparkOS 3602/2590 OPAMPS for Balanced (XLR) Outputs
  • Single TI1656/SparkOS 3602/2590 OPAMP for Unbalanced Output Circuit
  • Ultra Low Noise Power Supplies (Updated to handle higher current based OpAmps)
  • Front Illuminated LED Ring Switches
  • Low Noise Oscillators
  • Relay Switched USB Inputs (Removes any noise generated from USB when turned off)
  • 12V (“Geshelli Style” 5.5mm x 2.1mm) POWER SUPPLY

Optional Amanero USB Available

  • USB 2.0 High Speed Interface
  • Plug and Play LINUX,MACOS,WIN11
  • 32Bit PCM (44.1Khz to 384Khz)
  • DSD64 – DSD512 Compatible
  • Optional Windows Driver Available (Needed for High Speed DSD Interface)

SPDIF Interface

  • 24bit SPDIF PCM Interface up to 216Khz
  • 4 Independently Selectable Ports Available (2xTOSLINK, 2xCOAX) Front and Rear

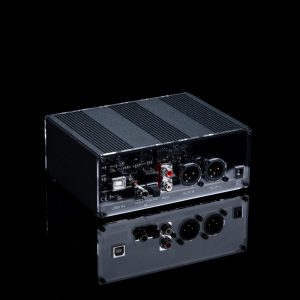

Outputs

  • Stereo XLR (Fully Balanced) Outputs
  • Stereo RCA (Unbalanced) Outputs
  • Outputs Work Simultaneously
  • THD+N < .000300%
  • SINAD < 111dB
  • SNR < 121dB

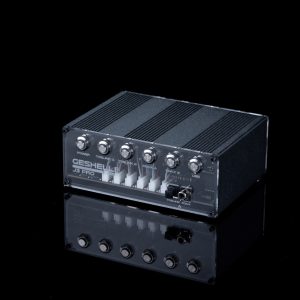

  • Powder Coated Aluminum Case (Choose Color Upon Checkout)
  • Custom Colors Available Upon Request
  • Plexi Front and Back (Choose Color Upon Checkout)

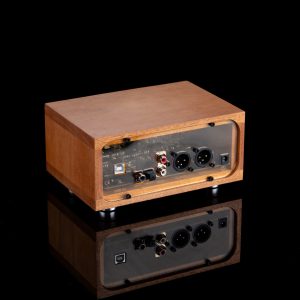

  • Optional Upgrade to a Hand Crafted Wooden Case (Multiple Stain Colors Available)
  • Wood Dimensions 4 7/8″ [deep] x 6 3/4 ” [wide] x 3″ [tall]
  • Aluminum Dimensions 4 1/2″ [deep] x 6 1/4″ [wide] x 2″ [tall]

J2 Measurements

1 / 6
2 / 6
3 / 6
4 / 6
5 / 6
6 / 6

J2 SPDIF @0dbFS SNR
J2 SPDIF @0dbFS THD+N
J2 SPDIF @0dbFS SNR
J2 SPDIF @0dbFS THD+N
J2 ESS Hump
JNOG vs. J2 ESS Hump

You can download the Amanero ASIO Driver at:

https://amanero.com/drivers.htm
